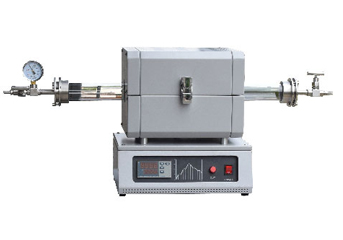

1200 Mini Tube Furnace

Vacuum sintering atmosphere protection vacuum sintering vacuum film coating, A variety of reaction temperature at about 1100c for CVD experiments Sintering in glove box

Key Features

Ultra-small size, low power consumption
Accurate temperature measurement

Stable temperature control
Split chamber, easy to take materials

Model	TI-O1200-50SL
Max. Temperature	1200oC
Working Temperature	1100oC
Temp. Accuracy	±1oC
Temperature Control	PID automatic control
Tube Material	High purity quartz tube
Tube Diameter	50mm
Tube Length	600mm
Heating Zone Length	200mm
Constant Heating Zone Length	100mm
Working Voltage and Power	AC220V 50Hz/60Hz 1KW
