Tem Orientation Imaging - Astar

Tem Orientation Imaging - Astar

ASTAR can turn any TEM into a very powerful analytical tool enabling orientation phase imaging at 1 nm resolution attainable (FEG TEM) in combination with other TEM Bibliography analytical techniques. The Precession Electron Device Spinning Star will change your conventional TEM into a powerful crystallography study tool. Any diffraction pattern recorded in precession conditions shows quantitative data of the diffraction pattern, practically free of dynamical effects. This unique feature allows to observe the true symmetries of the (nano) crystal being observed. It permits also to record the true intensities on each diffraction spot, giving access to calculation of the crystal structure. This feature makes now readily available structure determination on nanocrystals, using your conventional TEM.

Tem Orientation Imaging - Astar Specification

  • ASTAR works with any TEM 120-200-300 KV (LaB6/FEG).

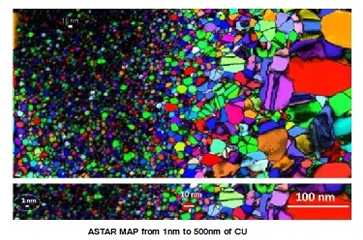

  • ASTAR orientation-phase map 1 nm resolution attainable with TEM-FEG.
  • ASTAR may work with any type of diffracting material(inorganic, organic) using standard TEM specimen preparation techniques.
  • ASTAR works in combination with precession diffraction (Patent pending technique) device DigiSTAR for ultra-precise orientation/phase maps.
  • ASTAR can work/retrofit between multiple TEMs in same lab.
  • Galvanic isolation system (GIS) via optical fiber for ASTAR-TEM connection.
  • Scanning in combination with precession for accurate orientation and phase maps.
  • Ultra-fast data acquisition (< 5 min ) (eg. 5 x 5 microns, 500 x 500 points) with CCD camera.
