Dual Energy Transmission X-ray Solutions

Technos is a leading organization for instrument manufacturing and since its inception, it has been a reflection of customer satisfaction. Technos.in provides a wide range of technical instruments with the best quality and precisely tested instruments like Dual Energy Transmission X-RAY, hybrid pixel detectors, dual-energy x-rays, etc. Our team of qualified and determined engineers ensure standard quality of each instrument and meticulously examined to prevent inaccuracy. Our technical and manufacturing domain ensures to offer the pre-eminent quality instrument. Our unit is well-equipped with foreign advanced equipment to result in the most efficient and quality instruments. Our equipment will compel the patrons to perform all the experiments with ease and by themselves. Our strong focus on manufacturing excellence ensures that our facilities and instruments carry out every step in the manufacturing process backed by a dedicated team of engineers and meeting the highest standards of quality.Technos.in takes great pride in enabling our customer satisfaction by manufacturing accurate and standard-designed instruments.

Dual-energy X-ray

Dual-energy X-ray also known as Bone densitometry is a method of assessing bone mineral density (BMD) using spectral imaging in other quarters it uses a very small dose of ionizing radiation to produce the impression of internal body parts (mostly hips and lower spine) to measure bone loss. It is examined by aiming two X-ray beams with different energy levels at the patient's bones. The bone mineral density (BMD) can be determined from the absorption of each beam by bone when absorption of soft tissue is subtracted. Dual-energy X-ray absorptiometry is widely accessed and most precisely examined bone density measurement technology.

The Dual-energy X-ray (DXA) scan is consistently used to diagnose and follow osteoporosis, to assess an individual's risk for developing osteoporotic fractures as set of to the nuclear bone scan, which is sensitive to certain metabolic diseases of bones in which bones are striving to heal from fractures, tumors or infections.
Its testing procedure is hassle-free and requires minimal or no special preparations. All you need to keep in mind is:

• Do not take calcium supplements for at least 24 hours before your test.
• Inform your doctor and the technologist if there may be a possibility of you being pregnant or if you have recently had a barium test or been injected with any contrast material for a radioisotope scan or Computer tomography.
• Ensure that you are not wearing any metal accessories such as jewelry, zippers, hooks, or metal fasteners.

Dual Energy Transmission X-RAY

Dual-energy imaging generates a pair of images that separate the soft-tissue and bony structures at different X-ray energies by exploiting the differential relative attenuation of X-ray photons demonstrated by them at varied energies of X-rays. This device reduces the structure noise by startling visual effects. It separates fat images from other images of the tissue in obesity studies by scrutinizing them. By using different source voltage or varied X-ray energy windows, different X-ray energies can also be obtained with Dual Energy Transmission X-RAY. The older version of dual-energy studies was based on the extensive separation of the X-ray energies with the upper energy of about 100 keV. However, dual-energy imaging can be exigent for the desktop systems with a minimum kV of 40 kV. We illustrate the feasibility of dual-energy imaging for such moderate kV X-ray systems.
For estimating the spectral properties of a specimen radiographic system, the EM-based method is applied. This utilizes the spectral information for dual-energy imaging of a mouse and can operate between 20 kV and 35 kV. Spectra at two different source voltages are evaluated from transmission measurements of Al and Lucite in narrow beam geometry. The acquired spectral information is used to generate transmission data for soft-tissue and bone of a mouse. A rectifying method hiring a convolution kernel is used for scatter correction in the projection of the acquired data system. We transform a couple of projection images of a mouse attained at varied X-ray energies into the bone thickness map and the soft-tissue thickness map using polynomial inversion functions.
We provide two types of Dual-energy transmission X-ray solutions:

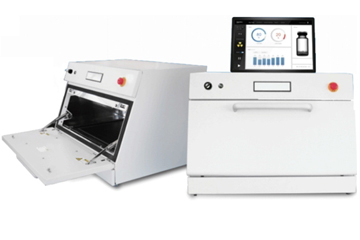

1. Dual desktop X-ray inspection system NFX-50

It creates images for analysis with its planer image scanner and the manual placements mechanism which is an exclusive patent technology of transmission X-ray from nano rays. A wide range of applications can be supervised to evaluate and analyze using this device. This device is exceptionally good for limited space because of its compact size. Following are its features:-

• It enables direct and single photon detection.
• In charge summing mode it increases point spread fucntion.
• It offers Zero noise, high S/N and high dynamic range.

2. NON - Destructive Inspection Equipment:-

N-series of Dual-energy transmission X-ray solution is a source module for the core components of non-destructive test equipment tests. They can also be used for customized systems. Following are its features:

Dual Energy Transmission X-RAY Manufacturer

We take pride in ensuring the highest standard of our instruments. Precisely tested and manufactured to circumvent any error or inaccuracy of ramification while using Dual energy transmission X-ray. Our manufacturing facilities are certified with world-class manufacturing and quality standards. We have state-of-the-art technology backed by passionate engineering, quality talent and focus on accuracy and technology. Our motive is to provide not only the service but an experience too, for this we helps our patrons with easy access of technical support and also provide demonstration of Raman spectrometer if any customer demands for it. Our after sale services are very efficient, for any enquiry or complaint of the instrument, we promise to undertake all necessary technical support and replacement terms.

Dual Energy Transmission X-RAY Suppliers

Overseen and tried by committed and experienced group of designers. We target giving the best nature of Dual energy transmission X-ray solutions than some other assembling units. Our production line is set up in tremendous zone with best quality and confirmed apparatus. Every unit of our item is tried with most excellent guidelines and precision guaranteeing pinpoint quality investigations. Our unit invests wholeheartedly in being the main unit of Dual energy transmission X-ray manufacturer of India. We have faith in most extreme consumer loyalty accordingly; we guarantee to give the précised quality devices. Regardless of whether you discover any incorrectness in our item we will give investigate to amend the issue or complete substitution of X-ray solutions.
