FL-20BW (Cooled, Mono)

By combining their legendary color processing technology with the capabilities of the latest generation sCMOS sensors, Tucsen have created a paradigm shift in color camera performance.The launch of the Dhyana 400DC, thanks to its sensitivity, perfect color reproduction and impressive noise minimization, results in a new capability which has formerly been unavailable in the field of scientific imaging.

As a result of the breakthrough performance of the scientific grade color CMOS sensor, the Dhyana 400DC produces perfect images in very low light conditions, allowing for vastly reduced exposure times and corresponding high frame rates, whilst maintaining the richness of the image detail information.

Specification

  • Product model :FL-20BW
  • Image sensor :1" CMOS,(15.86mm)
  • Color/mono :Mono
  • Resolution :5472(H) x 3648(V)
  • Pixel size :2.40μm x 2.40μm

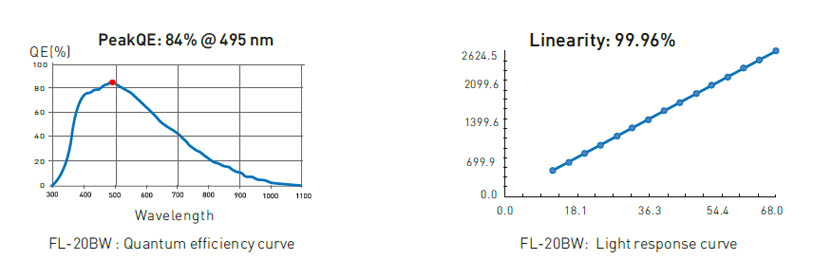

  • Quantum efficiency :84%@495nm
  • Dark current :0.001e-/pixel/s
  • DSNU :0.2e-
  • PRNU :0.8%
  • Readout noise :0.6e-
  • Full well capacity :16000e-
  • Shutter mode :Rolling
  • Cooling :-15 ℃
  • Frame Rate :16 fps @ 5472 x 3648( 8bit ), 8 fps @ 5472x3648 ( 16bit ) 53 fps @ 2736 x1824 ( 8bit ), fps @ 2736x1824 ( 16bit ) 67 fps @ 1824 x1216 ( 8bit ), 67fps @ 1824 x1216 ( 16bit )
  • Binning mode :2x2, 3x3, 4x4, 8x8
  • Exposure settings :Auto/Manual
  • Exposure time :3us - 1hour
  • Image Format :JPG/PNG/TIFF/DICOM
  • Data interface :USB3.0
  • Bit depth :16bit/8bit
  • Power supply :12V/8A
  • Camera weight :980g
  • PC software :Mosaic V2
  • Operating system :Windows, Linux
  • Operating environment :Temperature: 0-40℃; Humidity: 10%-85%
  • Camera size :85mm x 85mm x 112mm
