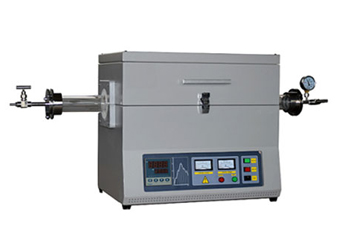

Split Tube Furnace

Sliding Furnace

Mainly used for battery materials, powder material drying, vacuum sintering, protective atmosphere sintering, etc  Vacuum coating, various materials calcining,Various CVD experimental around 1100OC.

Key Features

  • Beautiful design Fine workmanship
  • Precise temperature measurement Stable temperature control
  • Open chamber Convenient taking and placing
Model Chamber Size Tube Diameter Tube Length Temp.accuracy Working Temp. Max. Power
TI-T1200-25 Φ80×200mm Φ25mm 1000mm ±1Oc 1100Oc 2.5KW
TI-T1200-40 Φ80×200mm Φ40mm 1000mm ±1Oc 1100Oc 2.5KW
TI-T1200-50 Φ80×200mm Φ50mm 1000mm ±1Oc 1100Oc 2.5KW
TI-T1200-60 Φ120×440mm Φ60mm 1200mm ±1Oc 1100Oc 2.5KW
TI-T1200-80 Φ120×440mm Φ80mm 1200mm ±1Oc 1100Oc 2.5KW
TI-T1200-100 Φ120×440mm Φ100mm 1200mm ±1Oc 1100Oc 2.5KW
TI-T1200-120 Φ150×440mm Φ120mm 1200mm ±1Oc 1100Oc 2.5KW
TI-T1200-140 Φ150×440mm Φ140mm 1200mm ±1Oc 1100Oc 2.5KW
