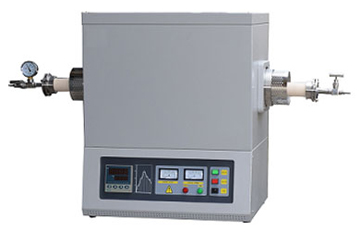

Tube Furnace

Tube Furnace

Vacuum sintering, Protective atmosphere sintering, Vacuum coating, various materials calcining, Various CVD experimental around 1700.

Technical Specification

  • Beautiful design Fine workmanship
  • Precise temperature measurement Stable temperature control
  • Working temperature Ultra high temperature heating element can be up to 1700oC
  • Rich products and many models are for your preference
Model Chamber Size Tube Diameter Tube Length Temp. accuracy Working Temp. Max. Power
TI-T1700-50IC Φ50×300mm Φ25mm 1000mm ±1Oc 1100Oc 4KW
TI-T1700-60IC Φ60×300mm Φ40mm 1000mm ±1Oc 1100Oc 4KW
TI-T1700-80IC Φ80×300mm Φ50mm 1000mm ±1Oc 1100Oc 4KW
TI-T1700-100IC Φ100×300mm Φ60mm 1000mm ±1Oc 1100Oc 4KW
TI-T1700-120IC Φ120×300mm Φ80mm 1000mm ±1Oc 1100Oc 4KW
TI-T1700-50IC Φ50×450mm Φ25mm 1000mm ±1Oc 1100Oc 4KW
TI-T1700-60IC Φ60×450mm Φ40mm 1000mm ±1Oc 1100Oc 4KW
TI-T1700-80IC Φ80×450mm Φ50mm 1000mm ±1Oc 1100Oc 4KW
TI-T1700-100IC Φ100×450mm Φ60mm 1000mm ±1Oc 1100Oc 4KW
TI-T1700-120IC Φ120×450mm Φ80mm 1000mm ±1Oc 1100Oc 4KW
