3D Precession Diffraction Tomography

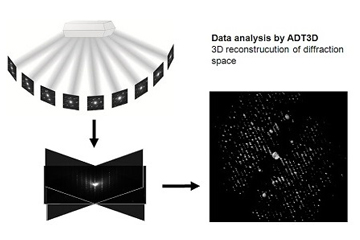

DigiSTAR-precession electron diffraction (PED) device enables the collection of quasi-kinematical intensities (X-Ray like) in any TEM. PED in combination with powerful software (3D dif f fraction tomography) enables the reconstruction of the reciprocal cell of any nanomaterial and the automatic measurement of the reflection intensities.
Feature of 3D Precession Diffraction Tomography
- Works with any TEM with 120-200-300 kV LaB6/W or FEG filament
- Selected area (SAED) or Nanobeam (NBD) mode Smallest crystals used:~100nm organics & ~20nm inorganics.
- Application for agglomerated / embedded samples Polyphasic materials
- Diffraction data collection with any CCD camera (35mm port or on axis)1k x 1k or higher
- Diffraction data collection with single tilt holder /tomography holder or cryoholder(for beam sensitive samples)
- Minimum tilt (for cell parameters determination) -15°/+ 15° 1°step. Recommended tilt (for crystal structure determination)-45°/+45° 1° step.
- DigiSTAR compatible with any TEM
- Manual / automatic PED data collection (TEM config. dependent)
APPLICATION NOTE

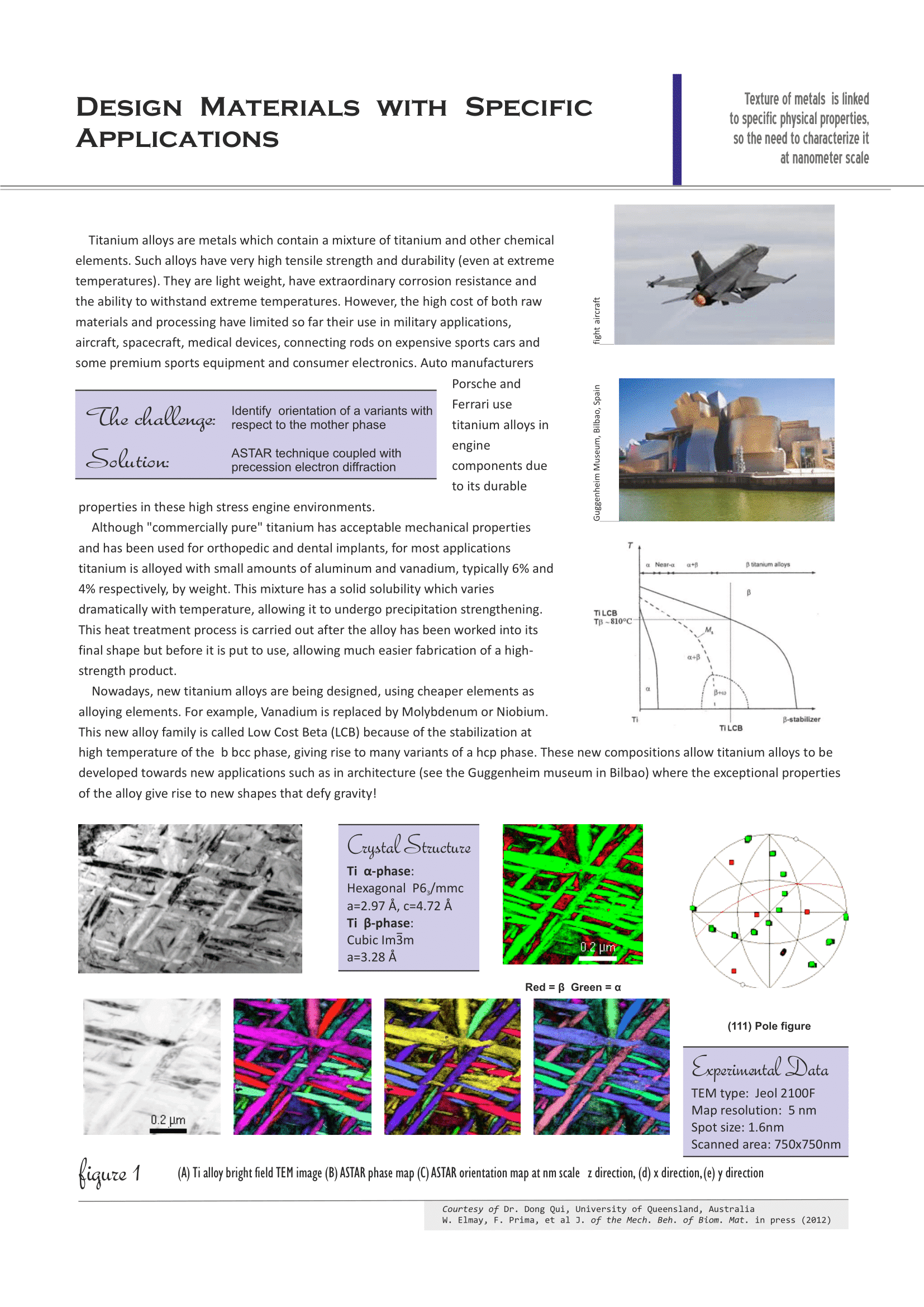

Design Materials with Specific Applications

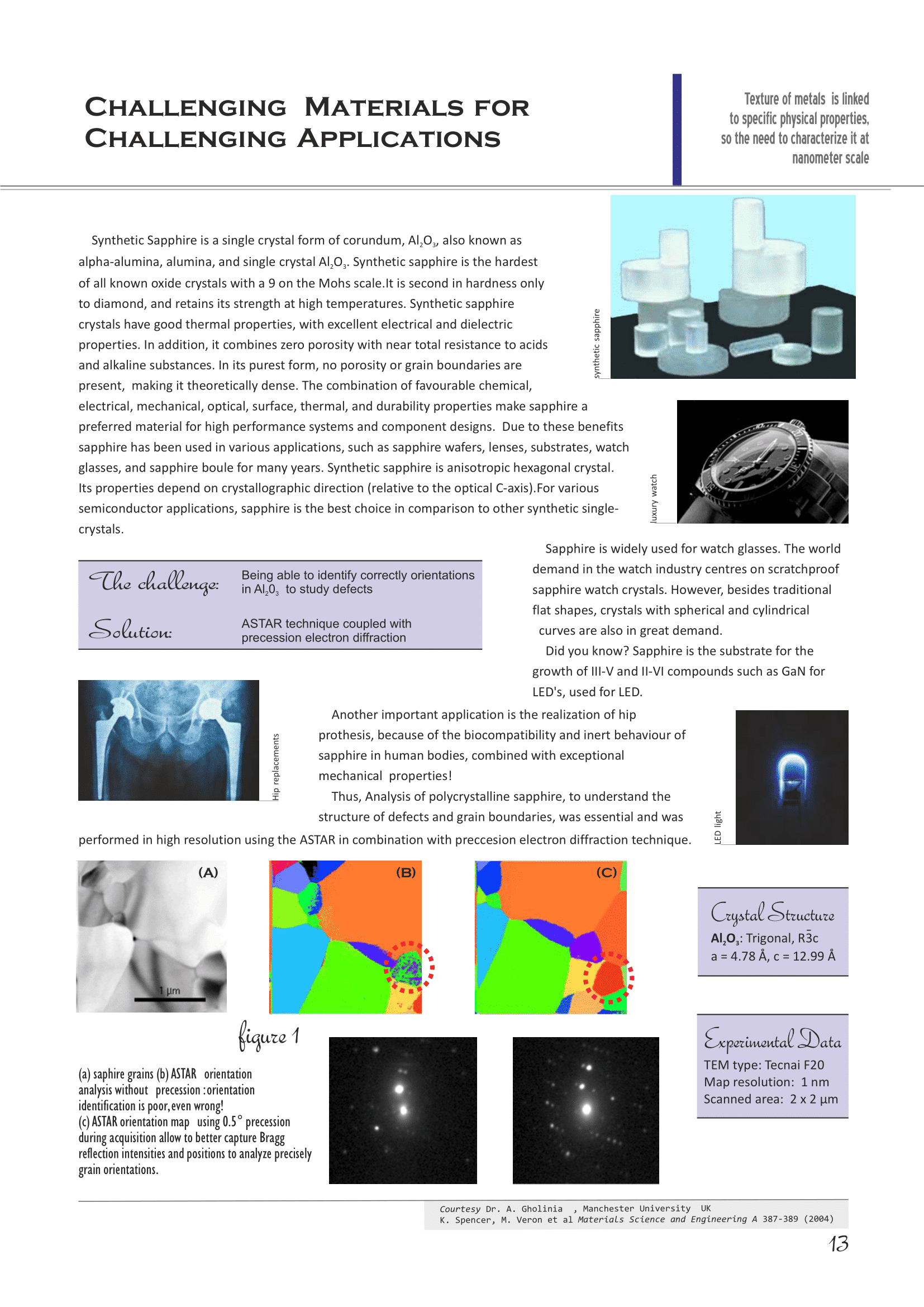

Challeging Materials with Challenging Applications

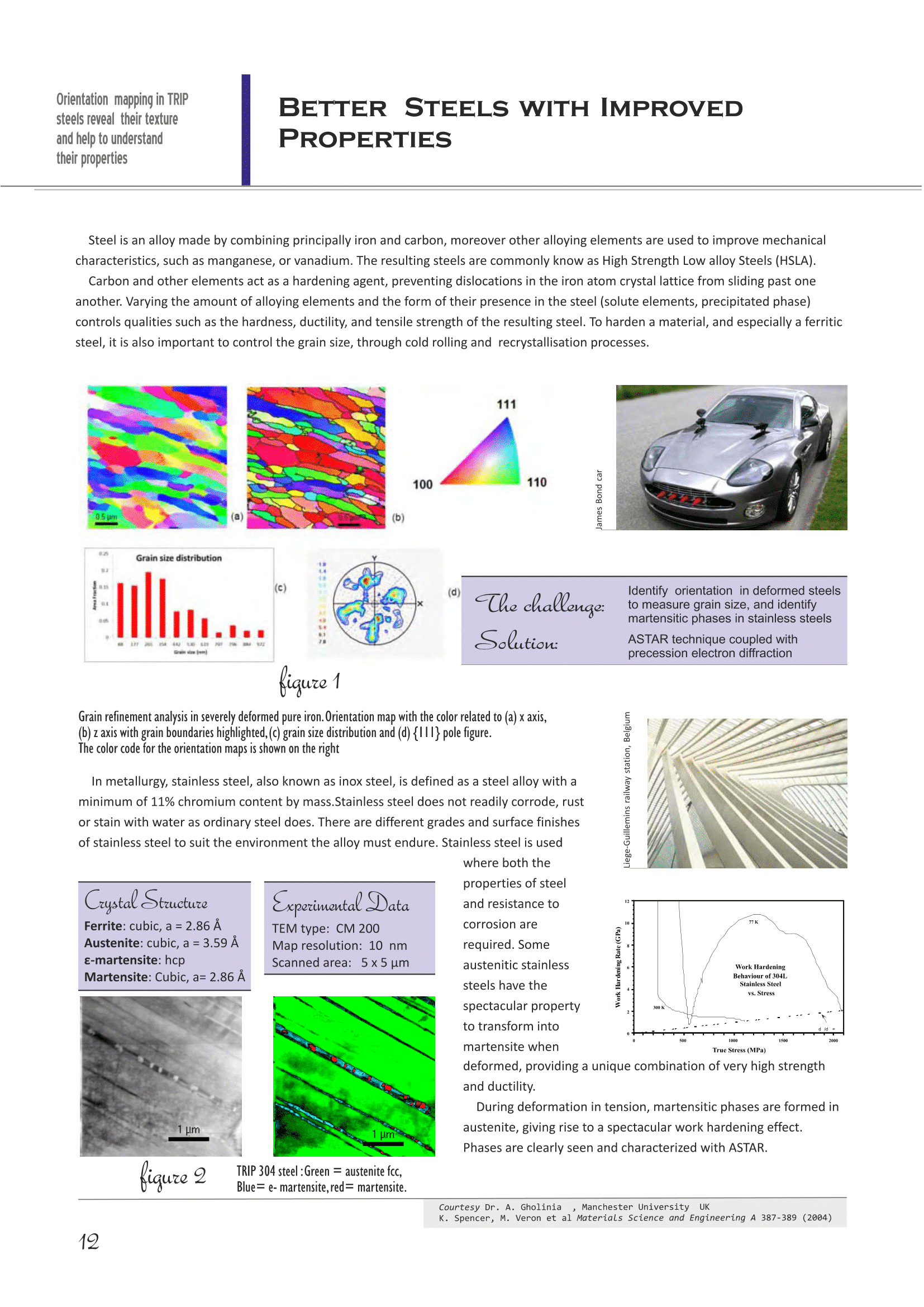

Better Steel with Improved Properties

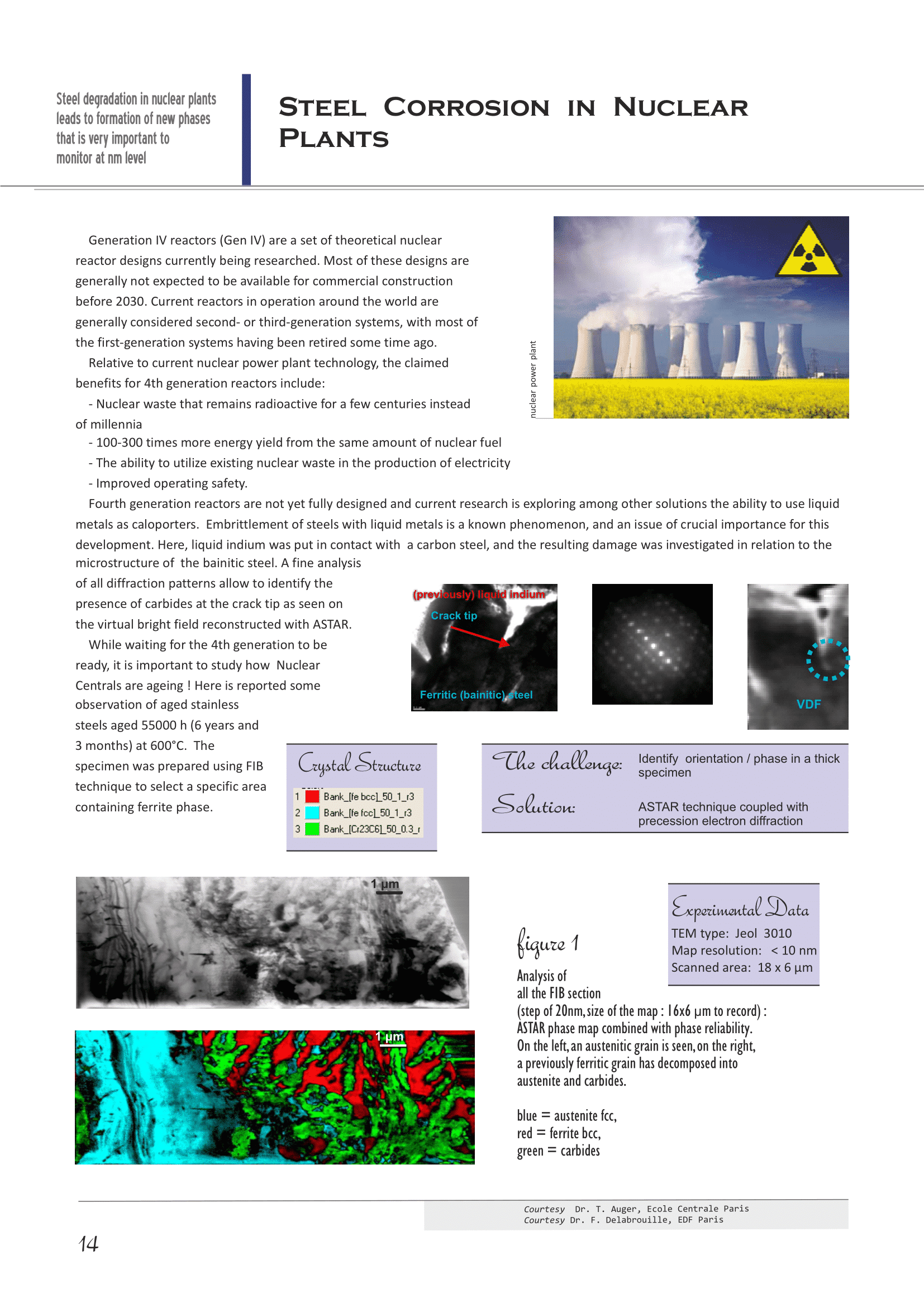

Steel Corrosion in Nuclear Plants

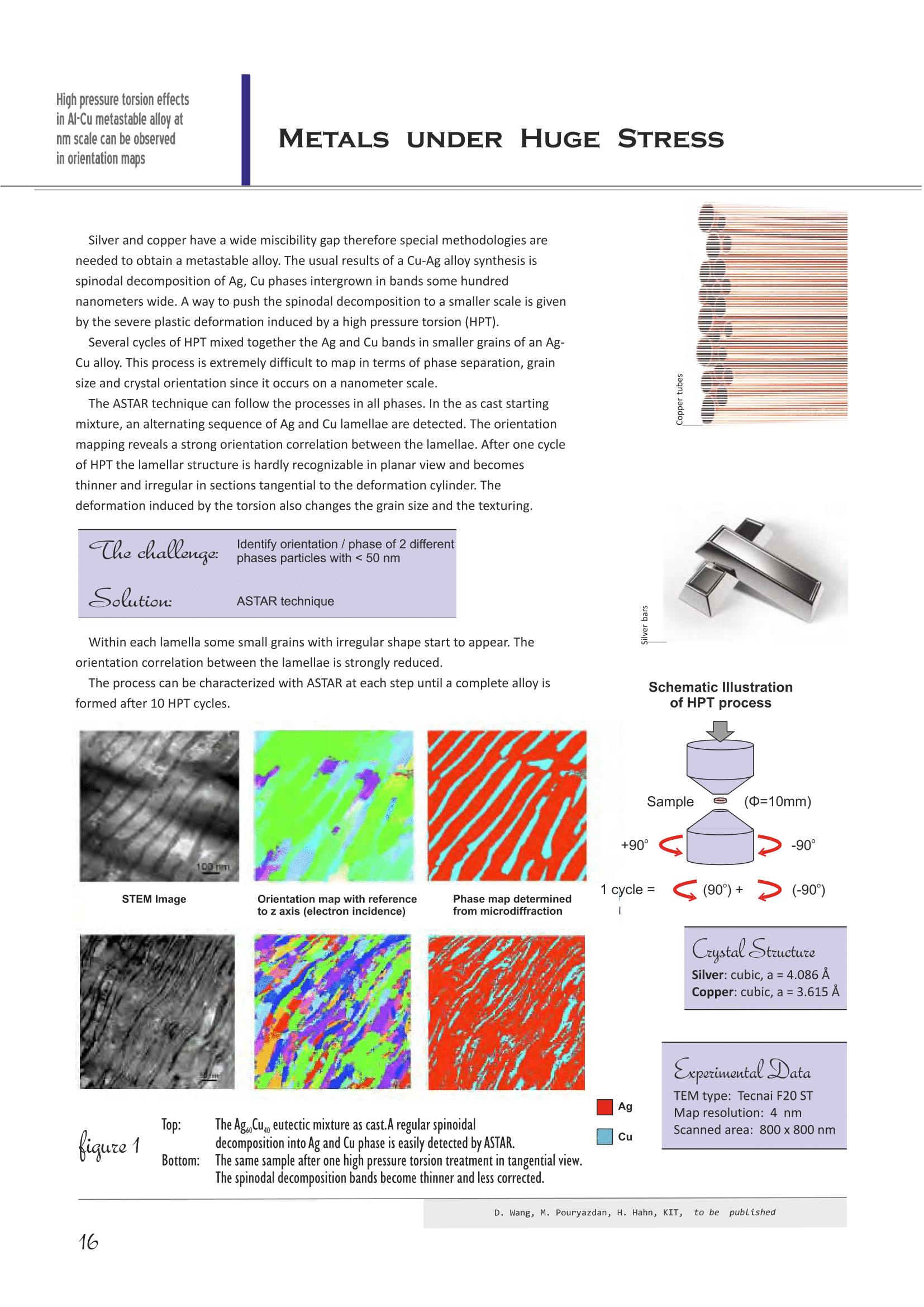

Metals Under Huge Stress

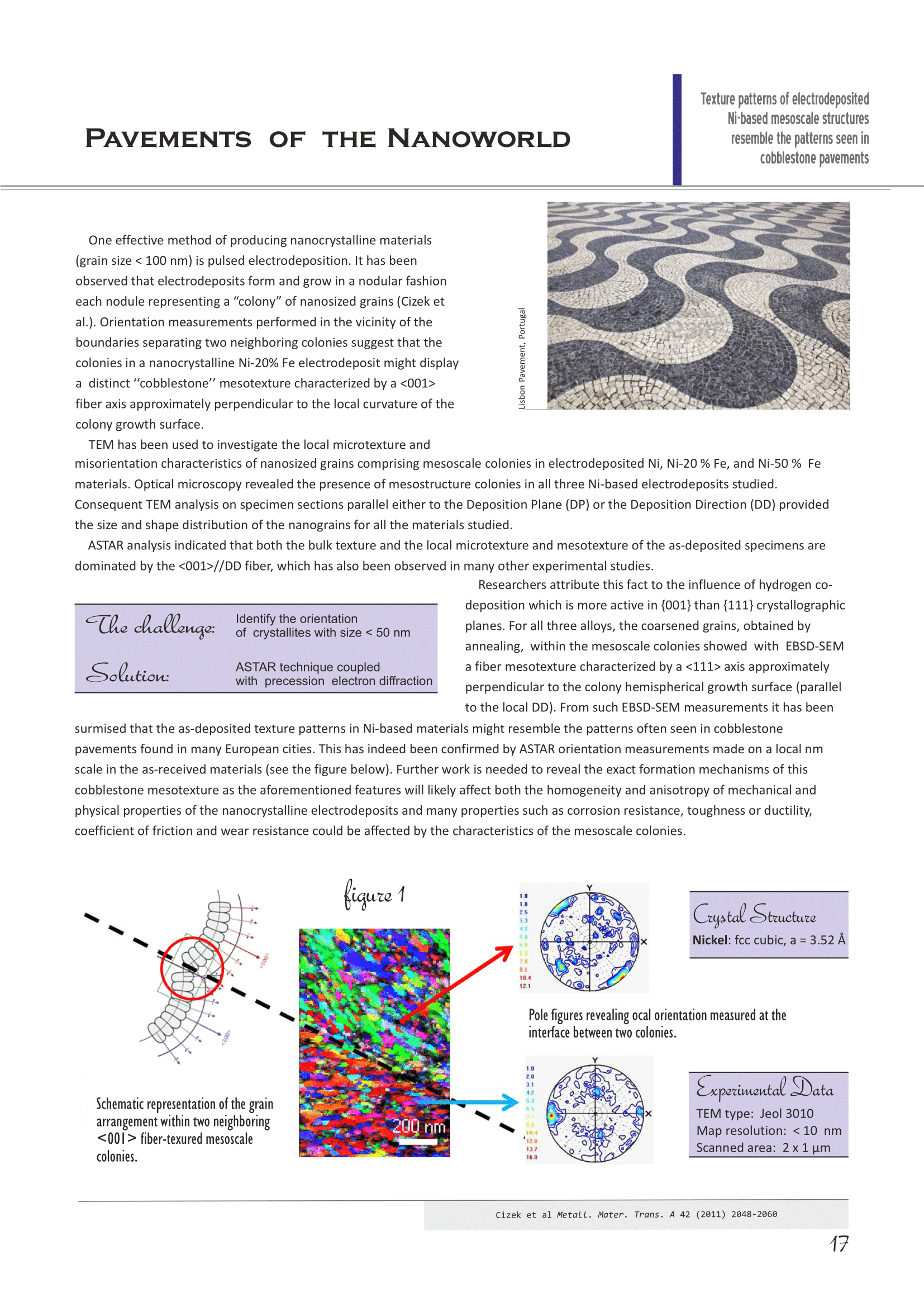

Pavements of the Nanoworld

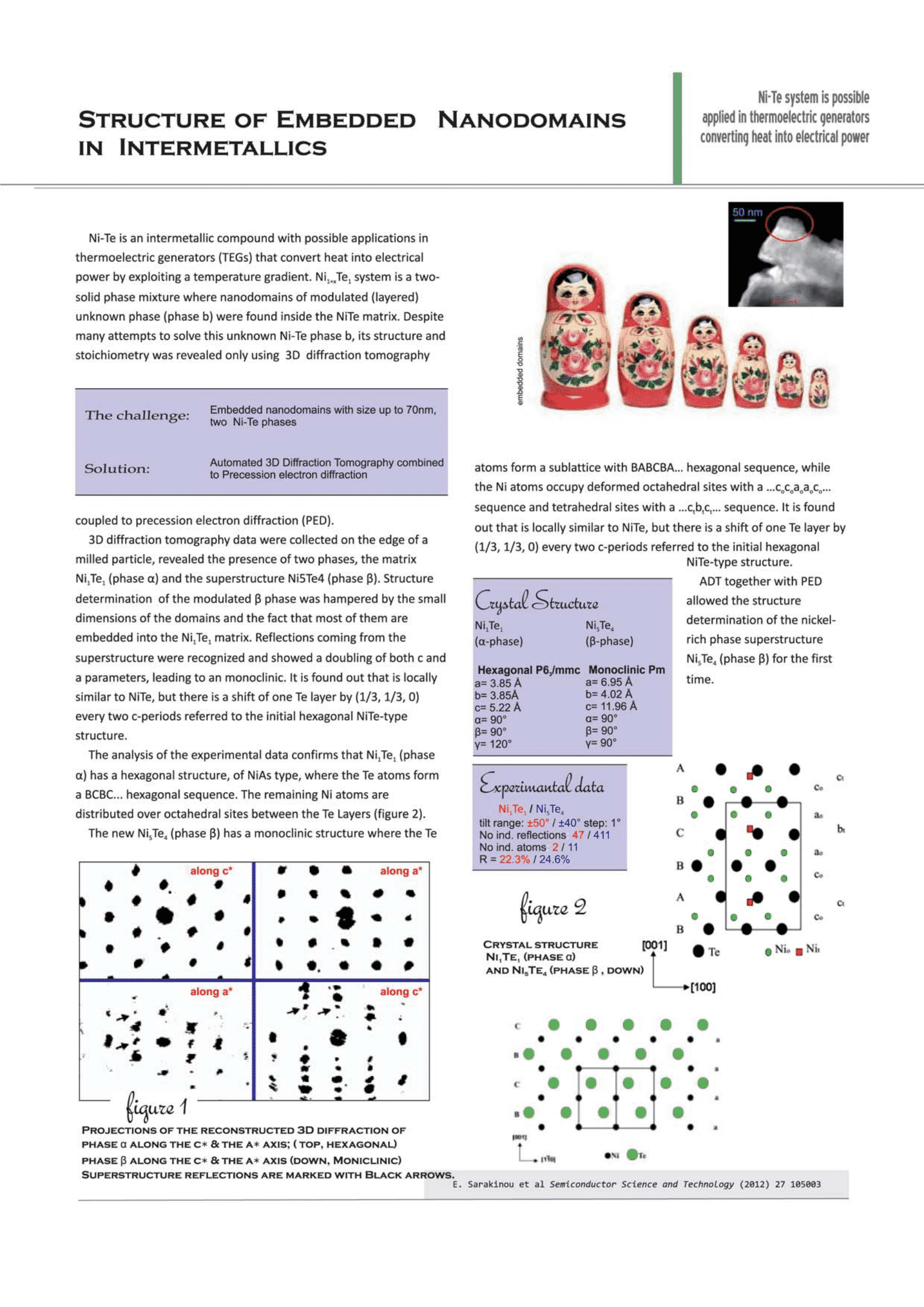

Structure of Embedded Nanodomains

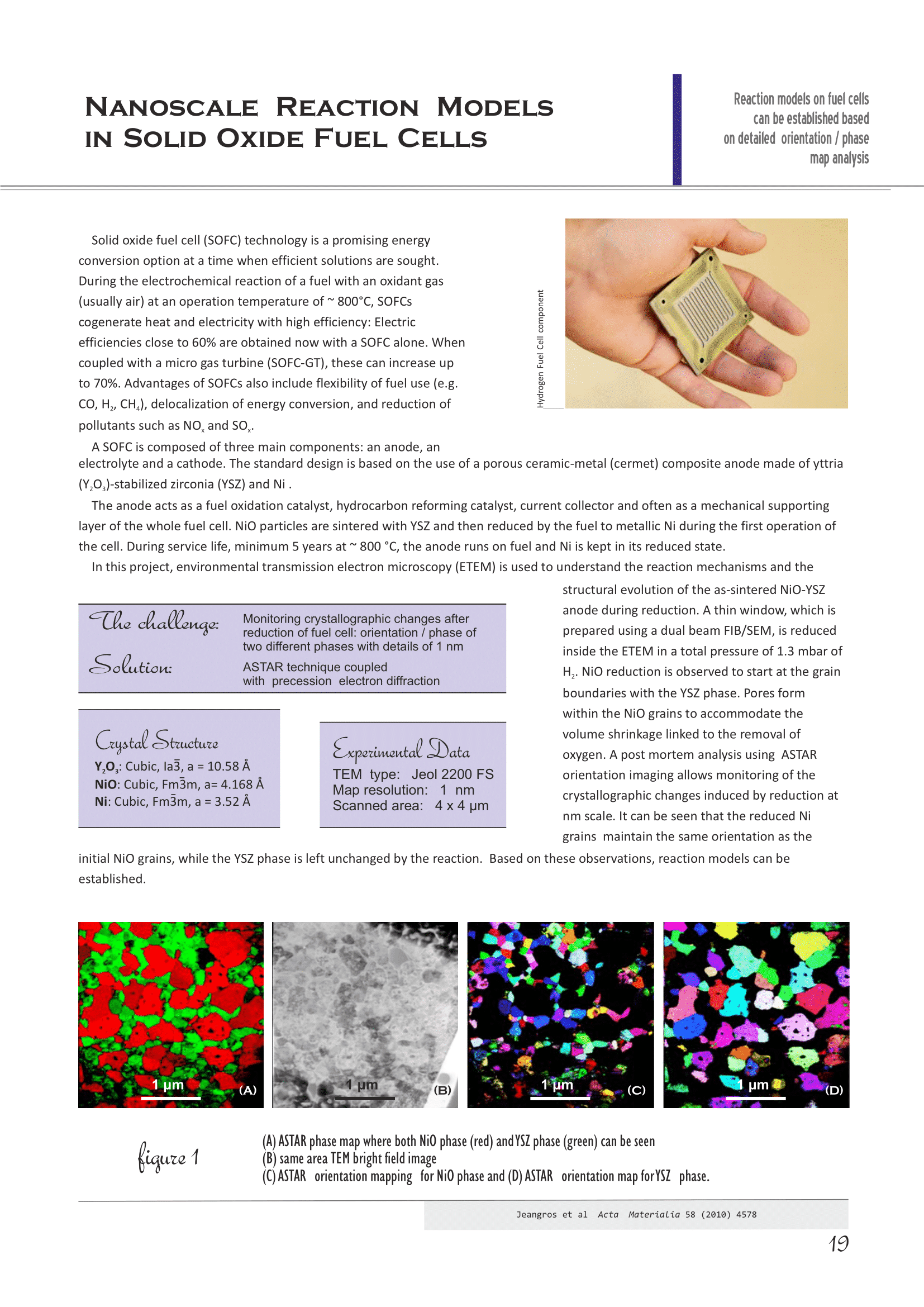

Nanoscale Reaction Models in Solid Oxide Fuel Cells

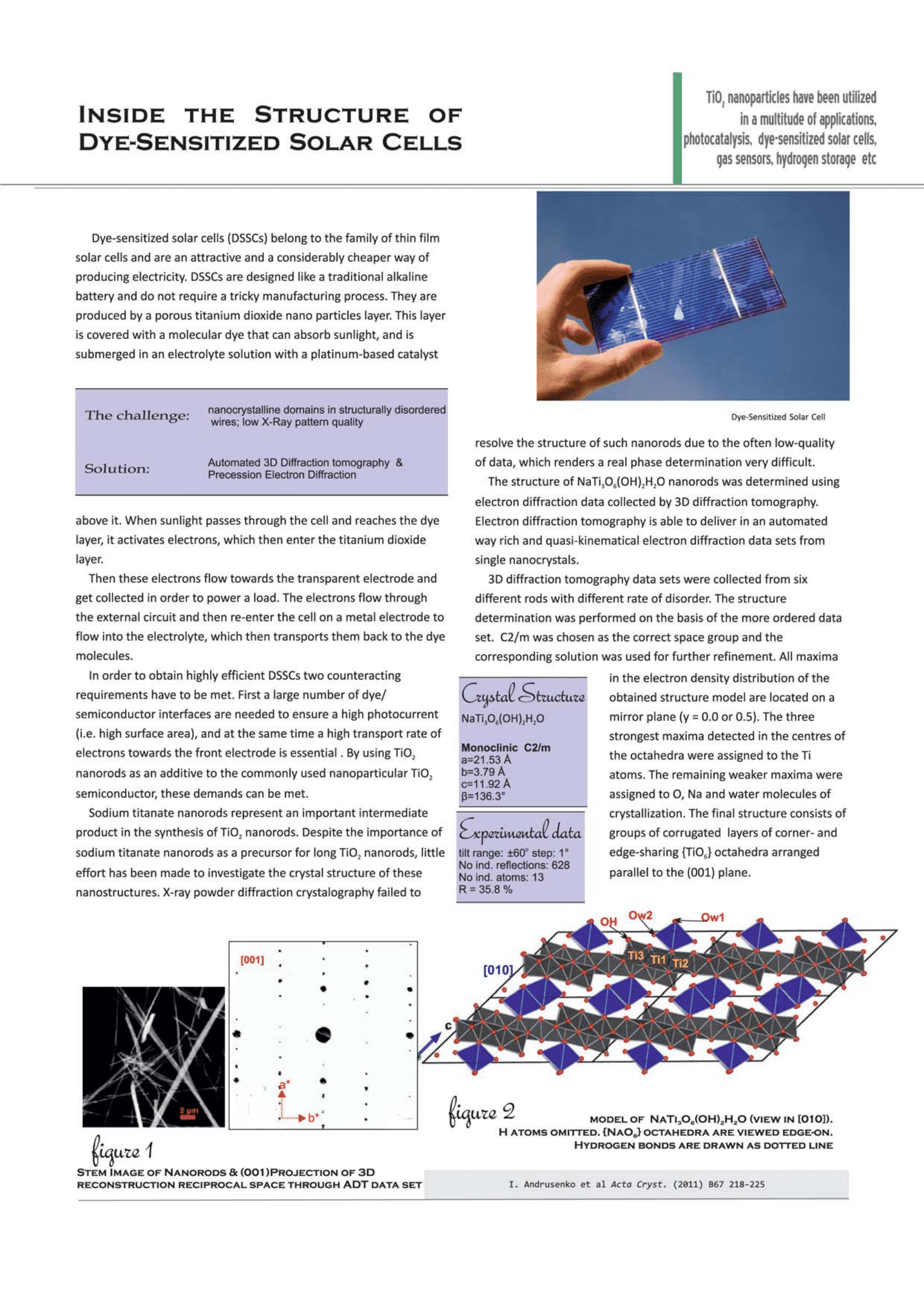

Inside the Structure of Dye-Sensitized Solar Cells

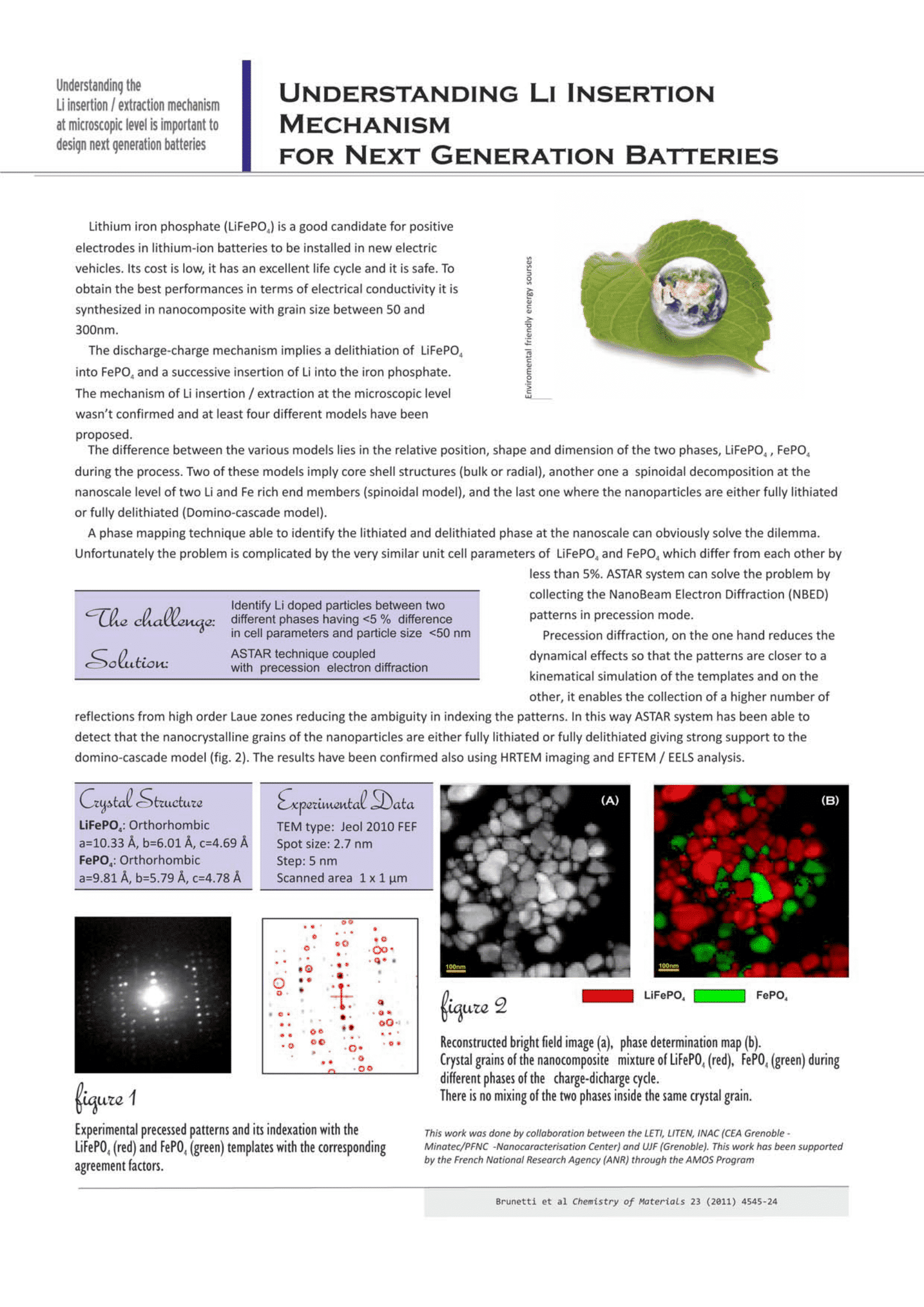

Understanding Li insertion for next generation batteries

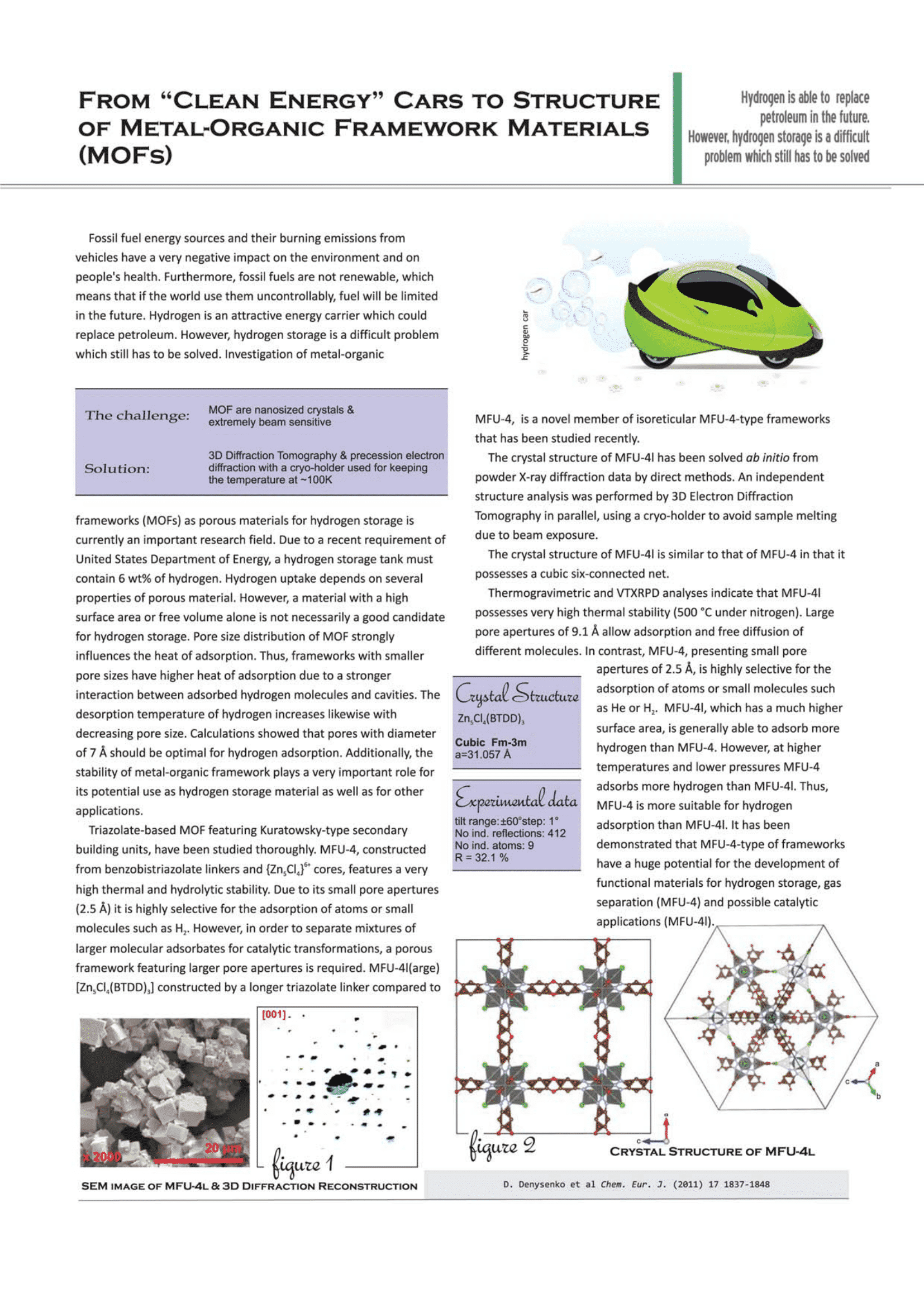

From “Clean Energy” Cars to Structure of Metal Organics MOFs

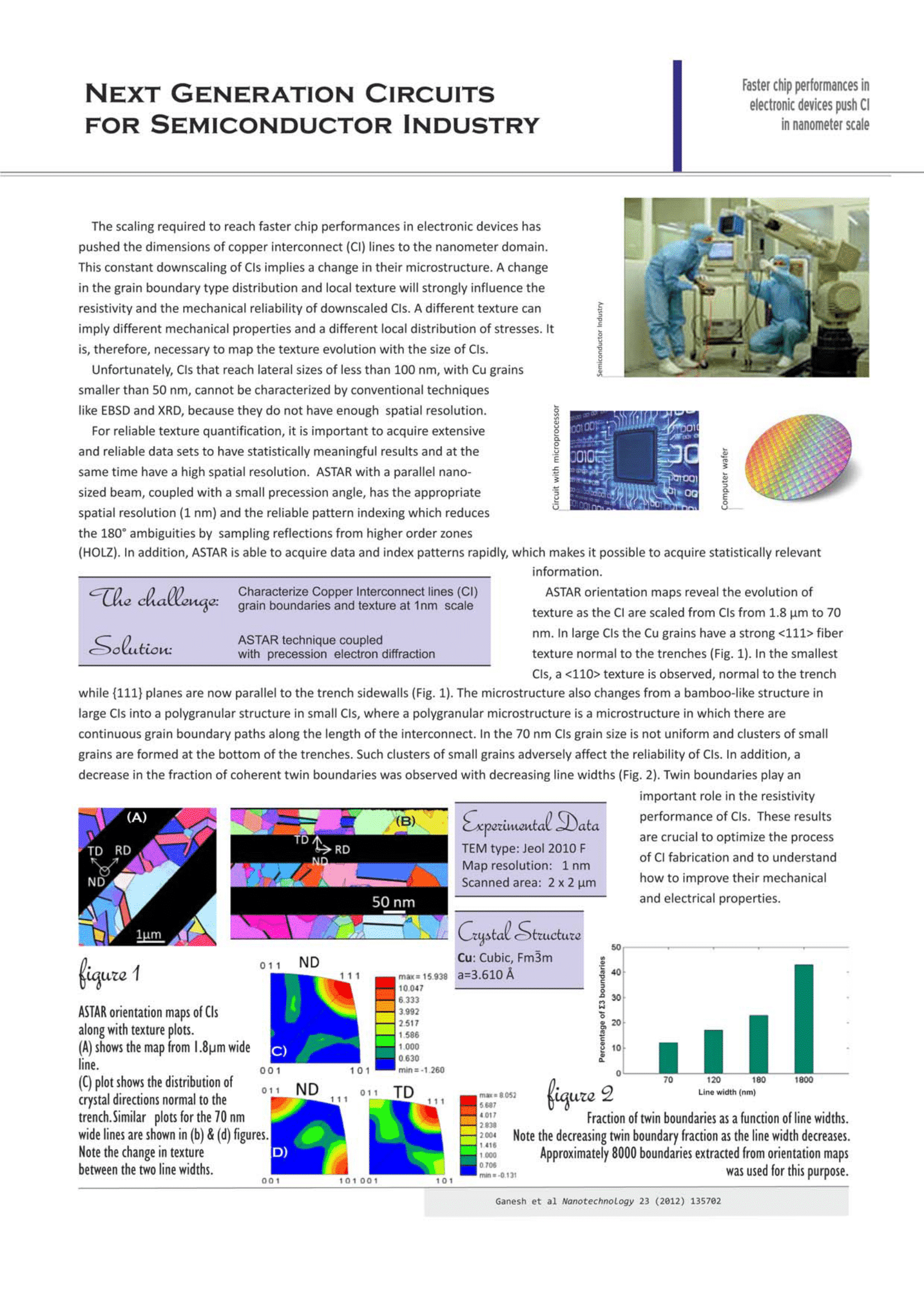

Next generation circuits for semiconductor industry

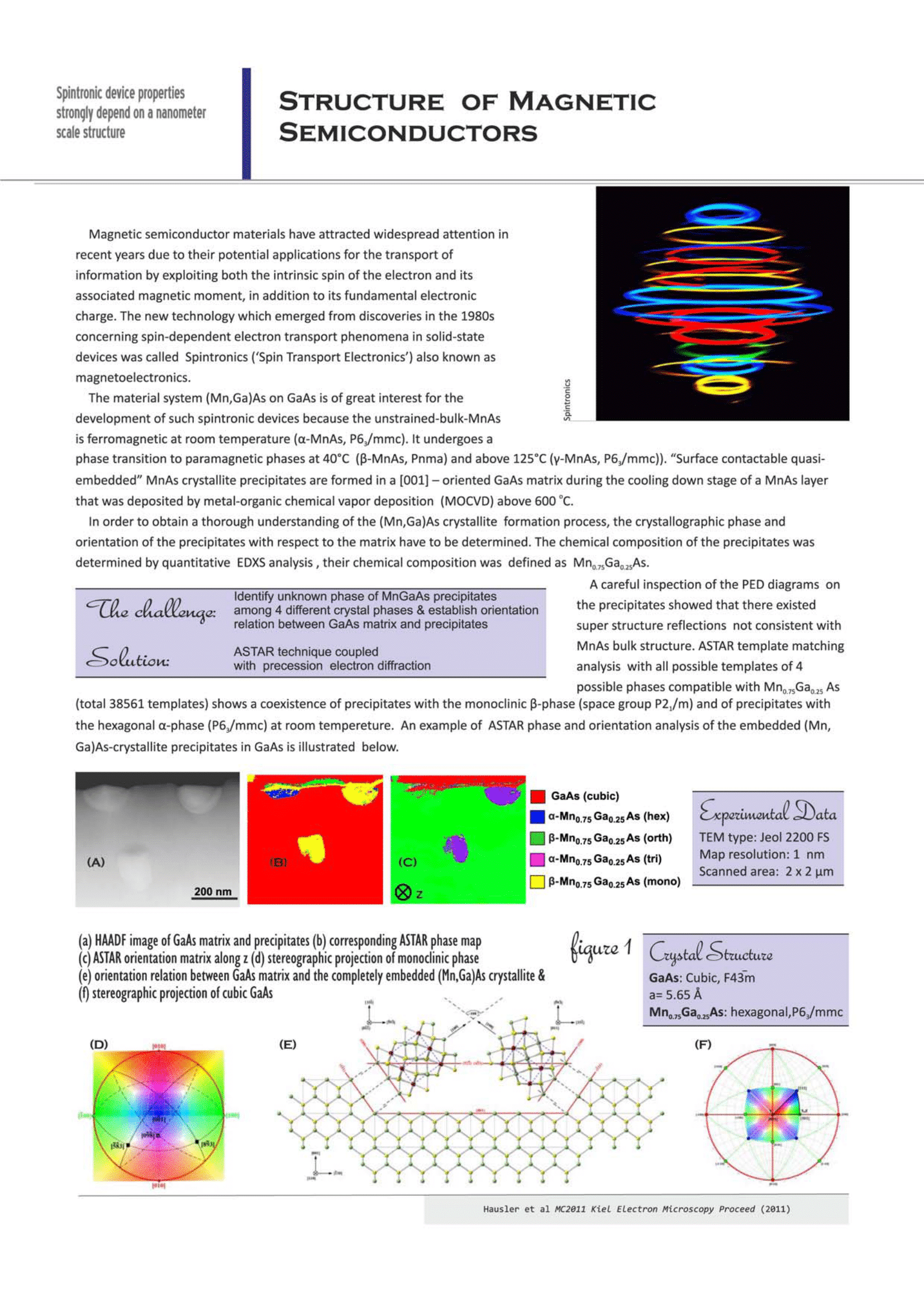

Structure of magnetic semiconductors

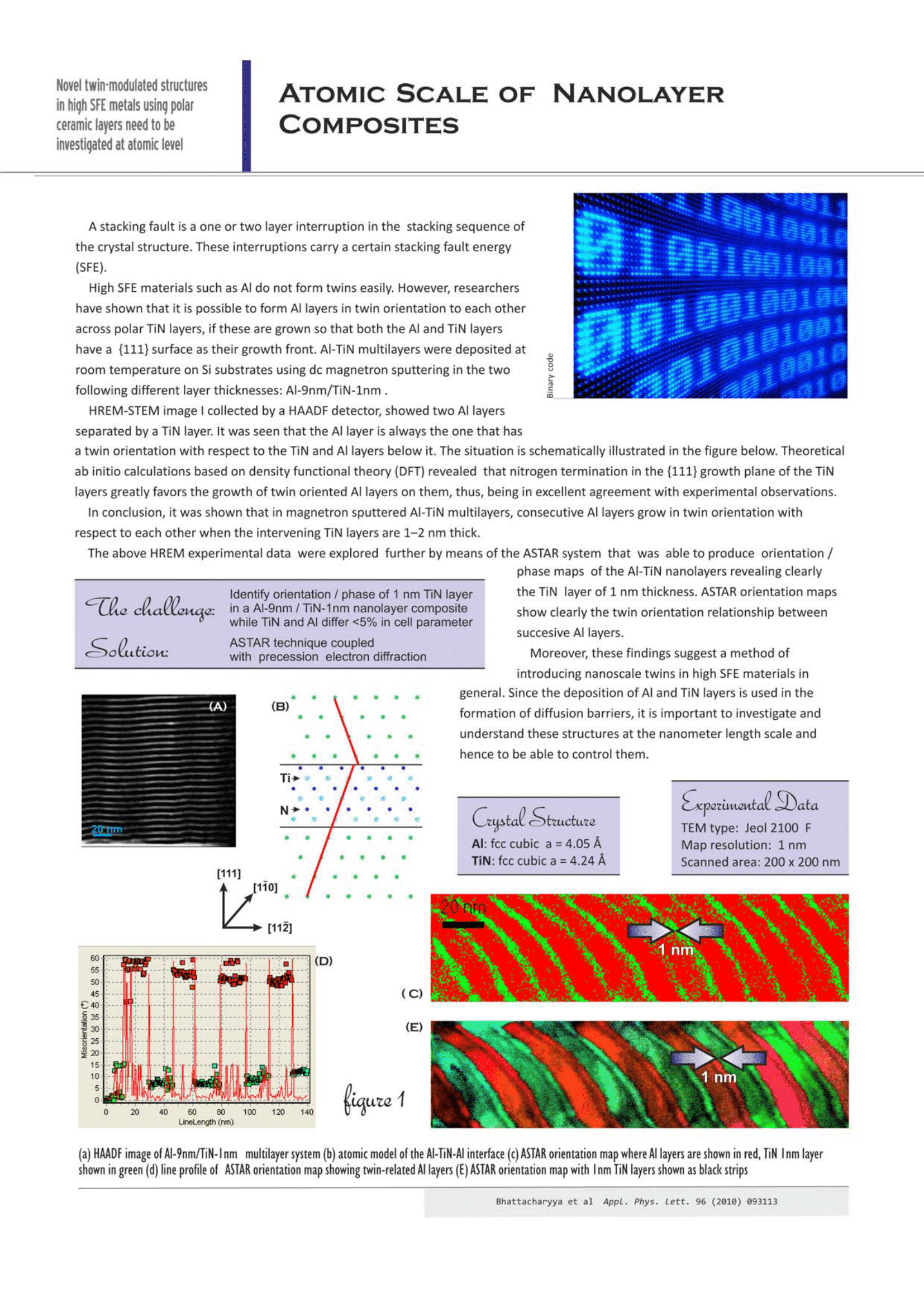

Atomic scale of nanolayer composites
