Dhyana 400DC (FSI,Color)

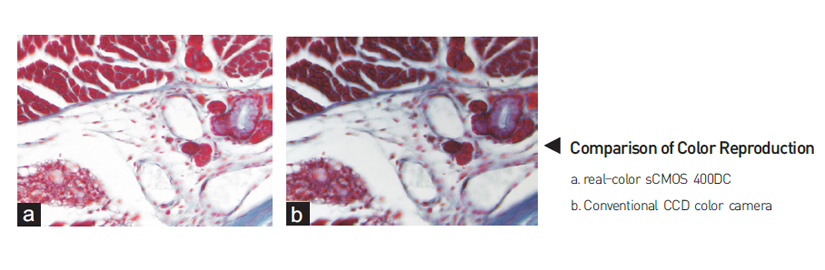

By combining their legendary color processing technology with the capabilities of the latest generation sCMOS sensors, Tucsen have created a paradigm shift in color camera performance.The launch of the Dhyana 400DC, thanks to its sensitivity, perfect color reproduction and impressive noise minimization, results in a new capability which has formerly been unavailable in the field of scientific imaging.

As a result of the breakthrough performance of the scientific grade color CMOS sensor, the Dhyana 400DC produces perfect images in very low light conditions, allowing for vastly reduced exposure times and corresponding high frame rates, whilst maintaining the richness of the image detail information.

Specification

  • Model :Dhyana 400DC
  • Sensor model :FSI sCMOS
  • Shutter type :Rolling
  • Color/Mono :Color
  • Effective area :13.3mm x 13.3mm
  • Resolution :2048(H) x 2044(V)
  • Pixel size :6.5μm x 6.5μm
  • QE :80%@600nm
  • Full-Well capacity :30ke-
  • Dynamic Range :85dB
  • Frame rate :22fps/s-8bit ; 16fps/s-16bit
  • Readout noise :HighGain:1.7e-
  • Exposure time :21μs-10s
  • Cooling Method :Forced air
  • Cooling temperature :Forced air ( Ambient at +25℃): -10℃
  • Dark Current :0.6 e-/pixel/s @ 0℃;0.35 e-/pixel/s @ -10℃
  • Binning :2x2
  • ROI :Support
  • Trigger Mode :Hardware & Software
  • Output Trigger Signals :Exposure, Global, Readout
  • Trigger Interface :Hirose
  • Data Interface :USB3.0
  • Data Bit Depth :16bit
  • OptionaInterface :C-mount
  • Power Supply :12V/8A
  • Power Consumption :50W
  • Dimensions :120mm x 119mm x 121mm
  • Weight :1853g
  • Software :Mosaic / LabVIEW / Matlab / Micromanager
  • SDK :Support
  • Operating System :Windows/Linux
  • Operating Environment :Temperature 0~40°C / Humidity 10~85%
