PBS Sensor
Wide scanning angles, Super small size!
PBS Series Sensor

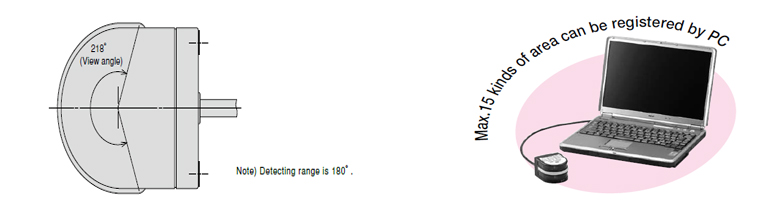

- This is 60% smaller than PB9 about cubic volume. Scanning Angle (Detection area) is increased to 180 degree and detactable zone is smaller.
- Operation principle is that semi-circular field is scanned by LED (lambda=880nm) and the coordinated are calculated by measuring distance to object and its step angle and then it detects obstacle in setting area.
- Detection area can be set by PC. Detection distance with 3 steps output for each area can be set
- Changeover for max 15 kinds of detection area set by PC can be made by outer bit input.
