UBG-05LN Sensor
High Accuracy with laser beam
Power source 24VDC type is lined-up
UBG-05LN Series Sensor
- UBG-05LN is an obstacle detection sensor with 785nm wavelength laser light source. It detects objects in the predefined area by scanning 180°semicircle and calculates the coordinates of the detected object by measuring its distance and angle

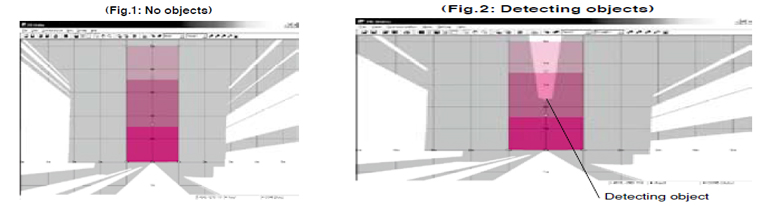

- Realtime data of scanning area can be displayed on PC with RS-232C.

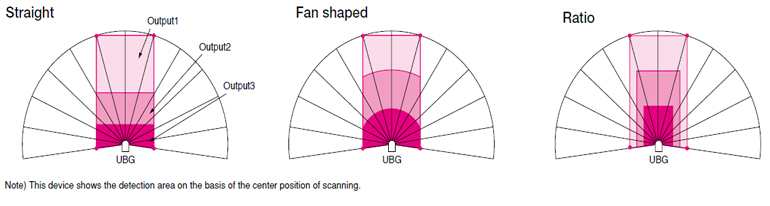

- different area patterns and their coordinate points can be set using application software and serial communication RS-232C. 3-step outputs can be selected for each area.
- Bit input at terminal points switches the predefined area patterns (31 kinds of area).
